Visual Water Designer
Reporting and equations screenshots

Visual Water Designer comes equipped with a unique reporting feature that not only provides a report summarizing the data used in any particular calculation, but also provides a step by step breakdown of the equations and theory used to arrive at a particular result.  This allows the user to easily follow how any result is obtained and also provides a quality control check for accuracy.  Once any report is generated, it can easily be exported to a variety of Windows friendly formats, such as Microsoft Word format (.doc), and Adobe Reader format (.pdf).:

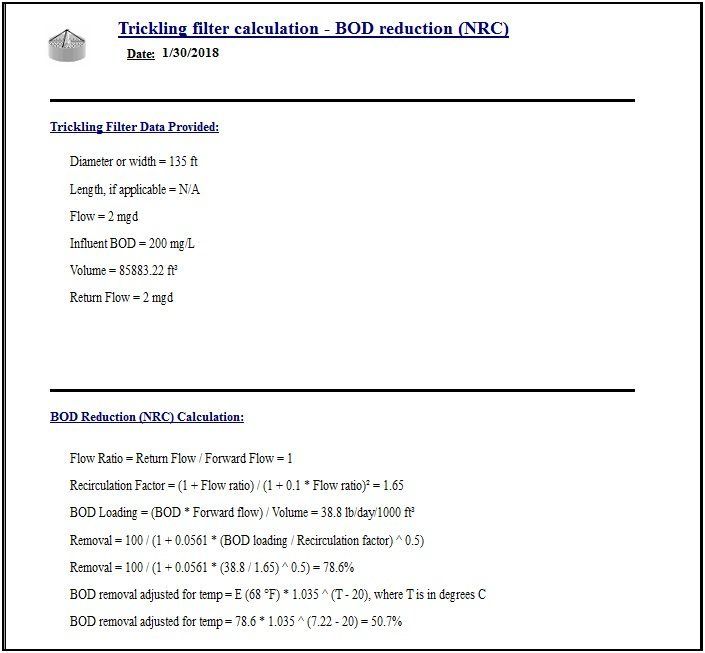

Summary report for trickling filter calculation:

Visual Water Designer software

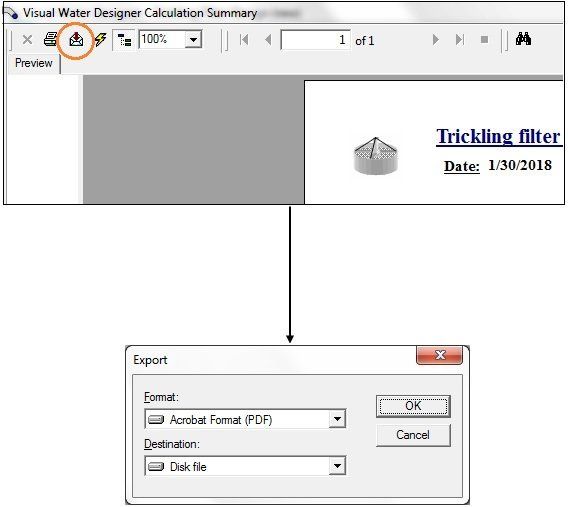

 Report exporting to other Windows formats:

Visual Water Designer software
