VH Reporting Screenshots
Visual Hydraulics offers a full range of reporting options, including full hydraulic profile reports and reports of individual profile sections.  In addition, any report can be exported to a variety of Windows formats, including Microsoft Word , Microsoft Excel , and Adobe Acrobat .  This allows reports to be easily edited, distributed, and emailed.

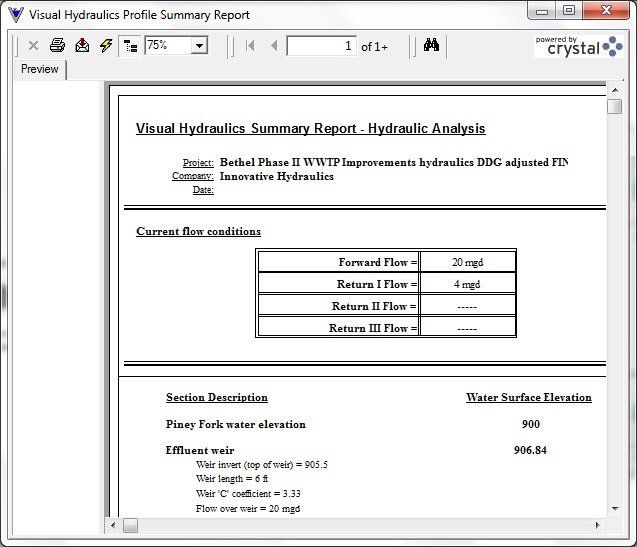

Generate reports for a full hydraulic profile:
Visual Hydraulics software

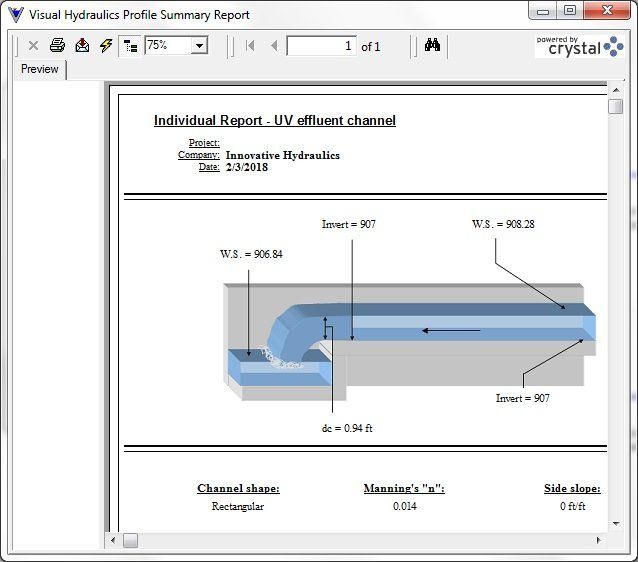

Generate reports for any individual section of the profile:
Visual Hydraulics software

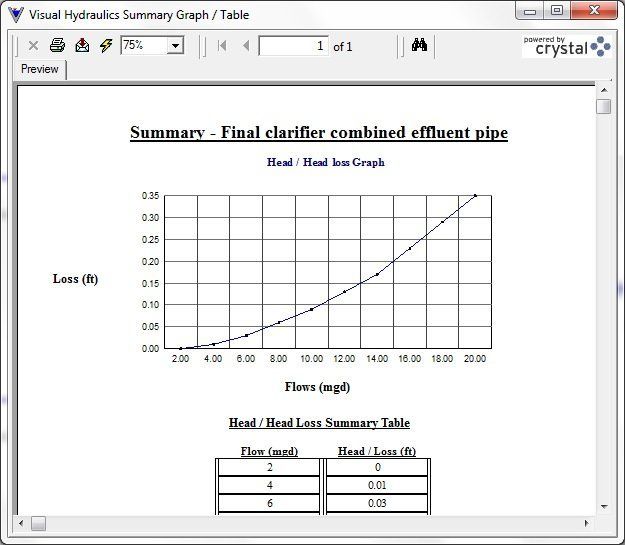

In addition to the summary reports that can be generated for the hydraulic profile, a reporting option is also available that graphs the behavior of any section of the profile over a user set range of flows:
Visual Hydraulics software

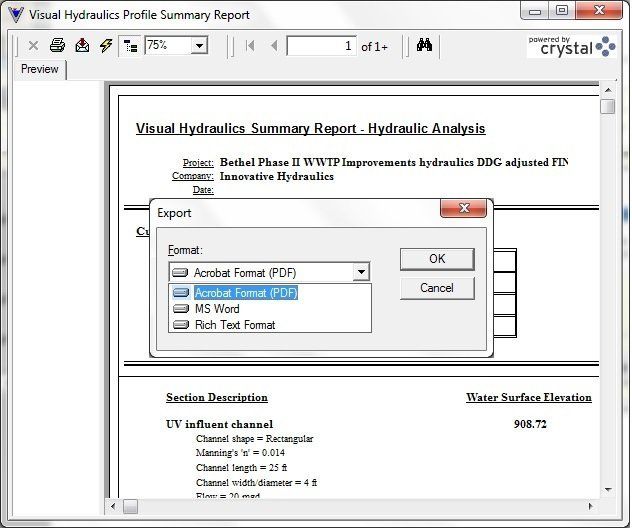

Easily take the summary reports and export them to a text file, Microsoft Word, or Adobe Acrobat document:
Visual Hydraulics software
